Multiphase flows with sharp interfaces

Multiphase flows with sharp interface

Two-phase flows usually have solutions with low regularity, i.e. they feature kinks and jumps due to jumps in density and viscosity, and because of surface tension.

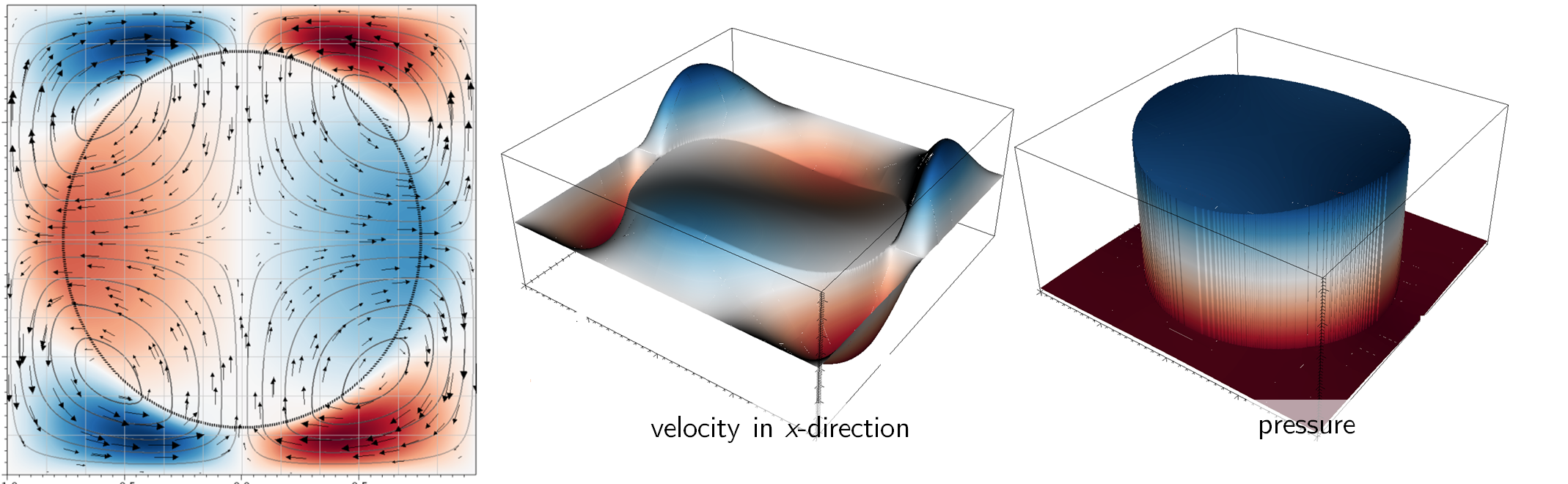

The challenge is to handle these jumps and kinks in the numerical method, without unphysical smearing. For an ellipsoidal droplet, velocity and pressure may look like this:

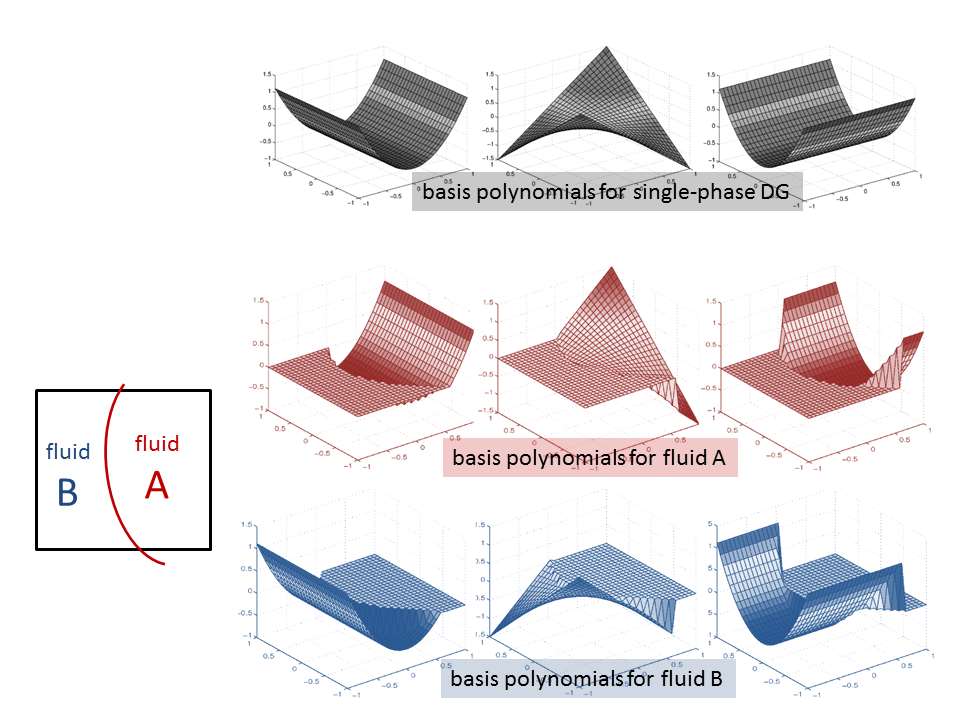

In BoSSS, an eXtended discontinuous Galerkin (XDG, aka. unfitted DG, aka. XFEM-DG, aka. cut-cell DG) is used to describe velocity and pressure with sub-cell accuracy. In cells where both phases are present, individual DG basis polynomials for both phases are introduced. By doing so, it is possible to retain the spectral convergence properties of the DG method for solutions with low regularity (see examples below).

Oscillating droplet

by: Florian Kummer

Simulation of a droplet with initially ellipsoidal shape.

Long term behavior and stability

by: Florian Kummer

One issue with respect to surface tension is long-term stability. This is because the pressure jump is proportional to the curvature, which is a property that is nonlinear and depends on second derivatives -- an unfortunate combination. By using sophisticated filtering techniques, BoSSS acquires long-term stability

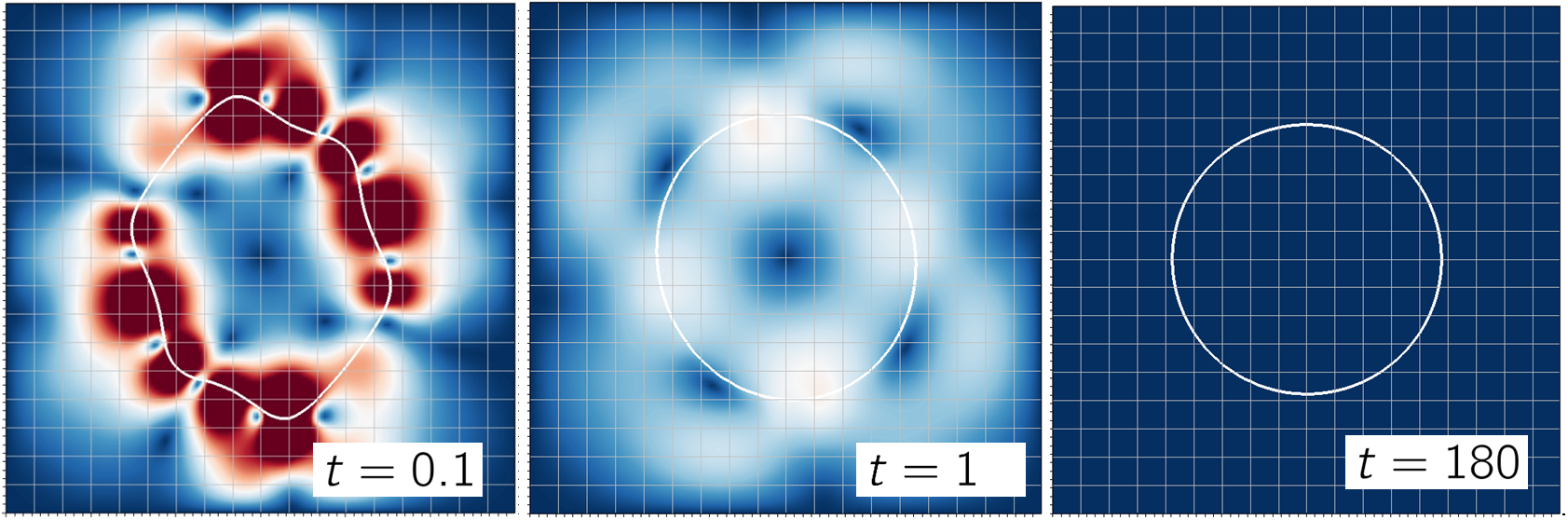

xdg_deformed_droplet — Velocity magnitudes for an initially strongly distorted droplet

Convergence results

by: Dr.-Ing. Florian Kummer

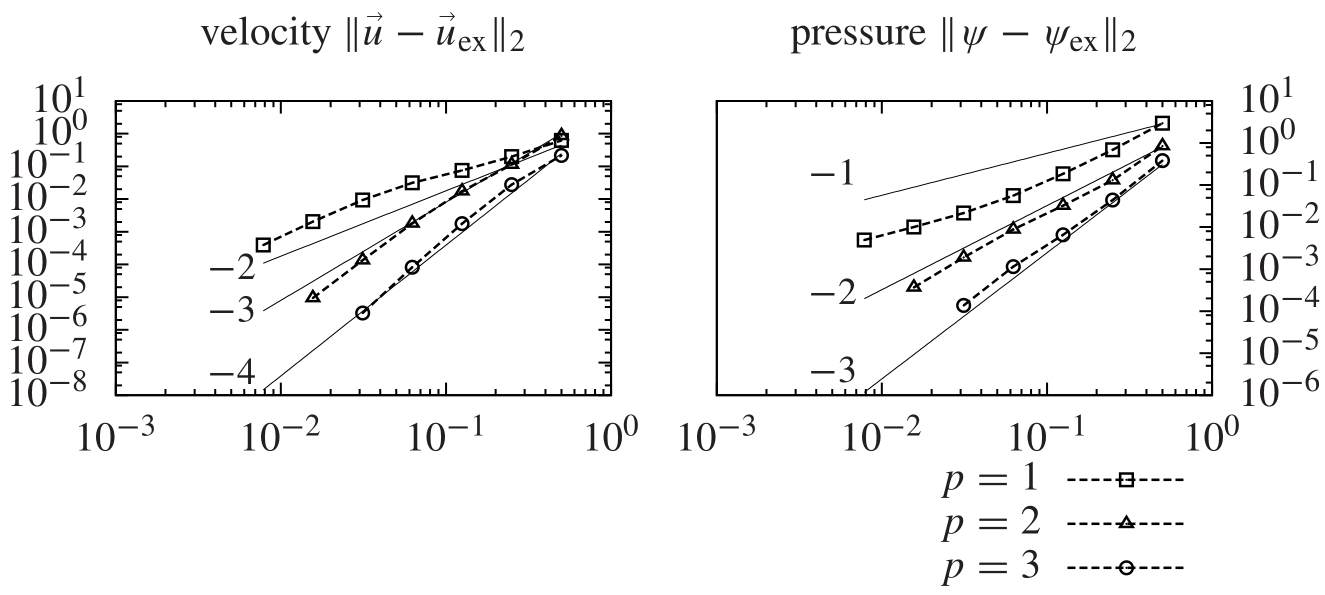

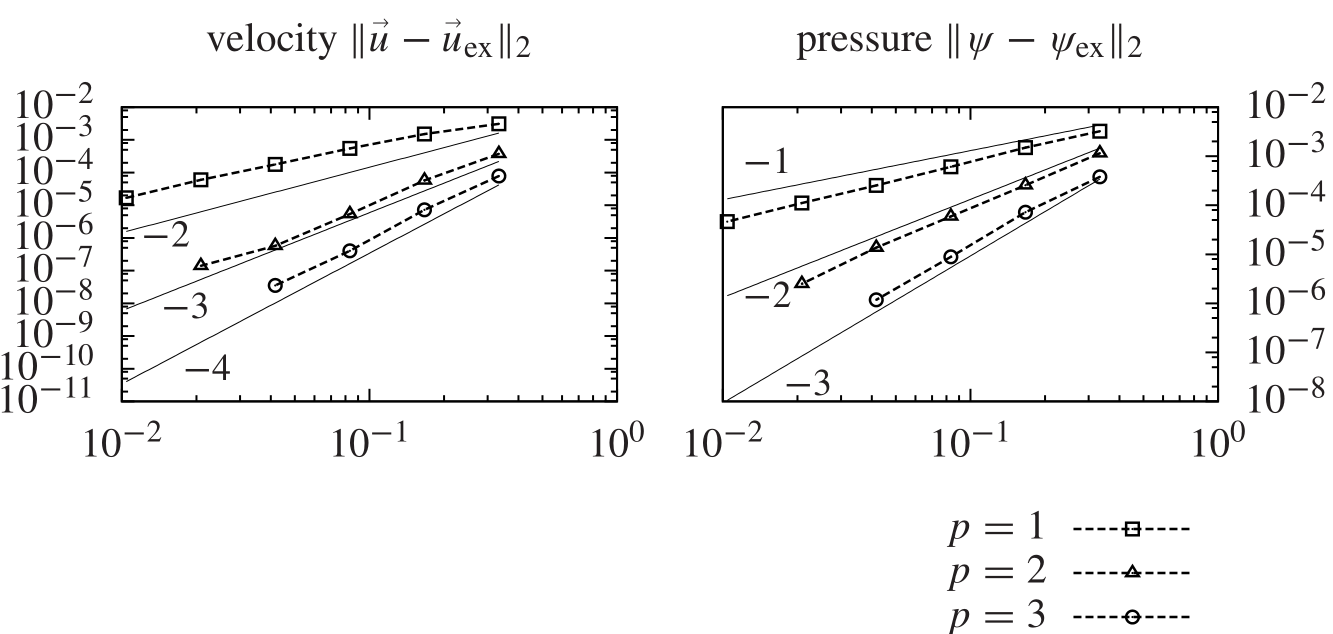

By using the XDG approach, BoSSS is able to provide spectral convergence for low-regularity solutions. I.e. the error in the velocity and pressure behave approximately as h^p+1 and h^p, where p is the order of the DG polynomials. This is in fact one of the most important results obtained by the BoSSS code so far.
